data center liquid cooling system

Shenling liquid-cooling-system

SKY-ACMECOL(Cold Plate)

Categories Data Center Cooling, Liquid Cooling

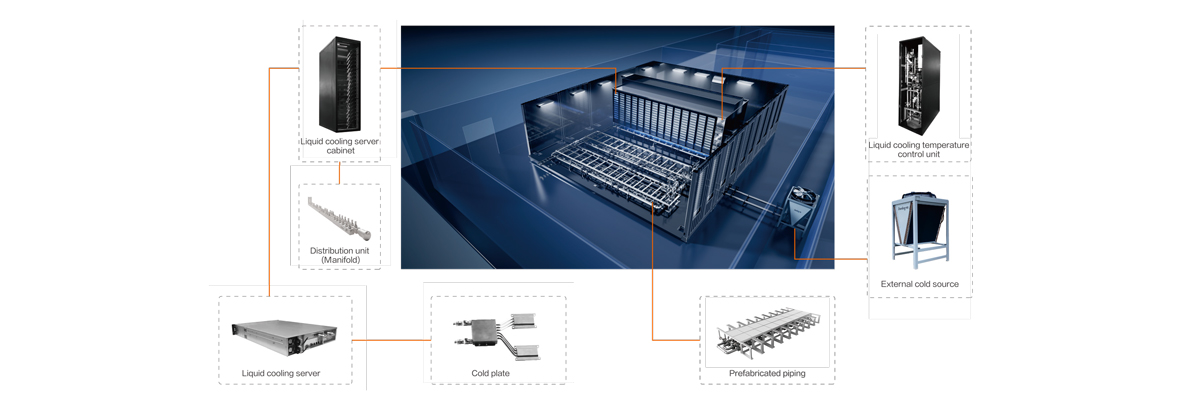

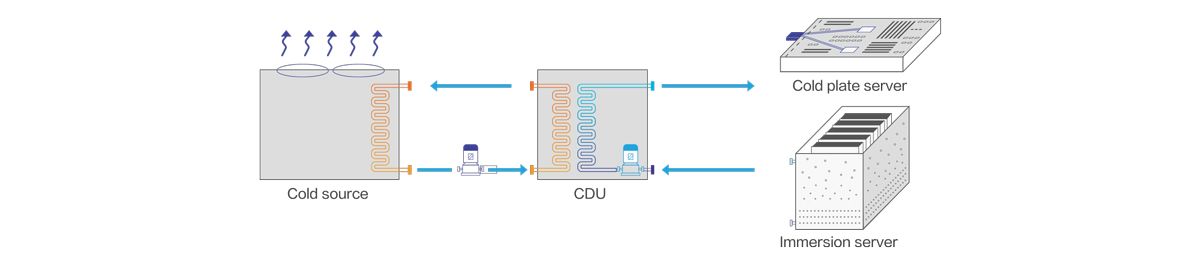

The Shenling SKY-AMECOL Data Center Cold Plate Liquid Cooling System uses a combination of onboard heat exchange and natural heat dissipation technologies. It transfers the heat generated by high heat-density components inside the server to the outside of the server chassis and then releases it directly to the outdoor environment through a natural heat exchange process.
- .
- Key Features:
- Cold plate heat exchangers
- Low-consumption natural heat dissipation
- Highly-efficient heat dissipation
- Flexible layout and quiet operation
- Data Center PUE≤1.15
- Take away 60%-90% of total heat
- Touchscreen for easy management

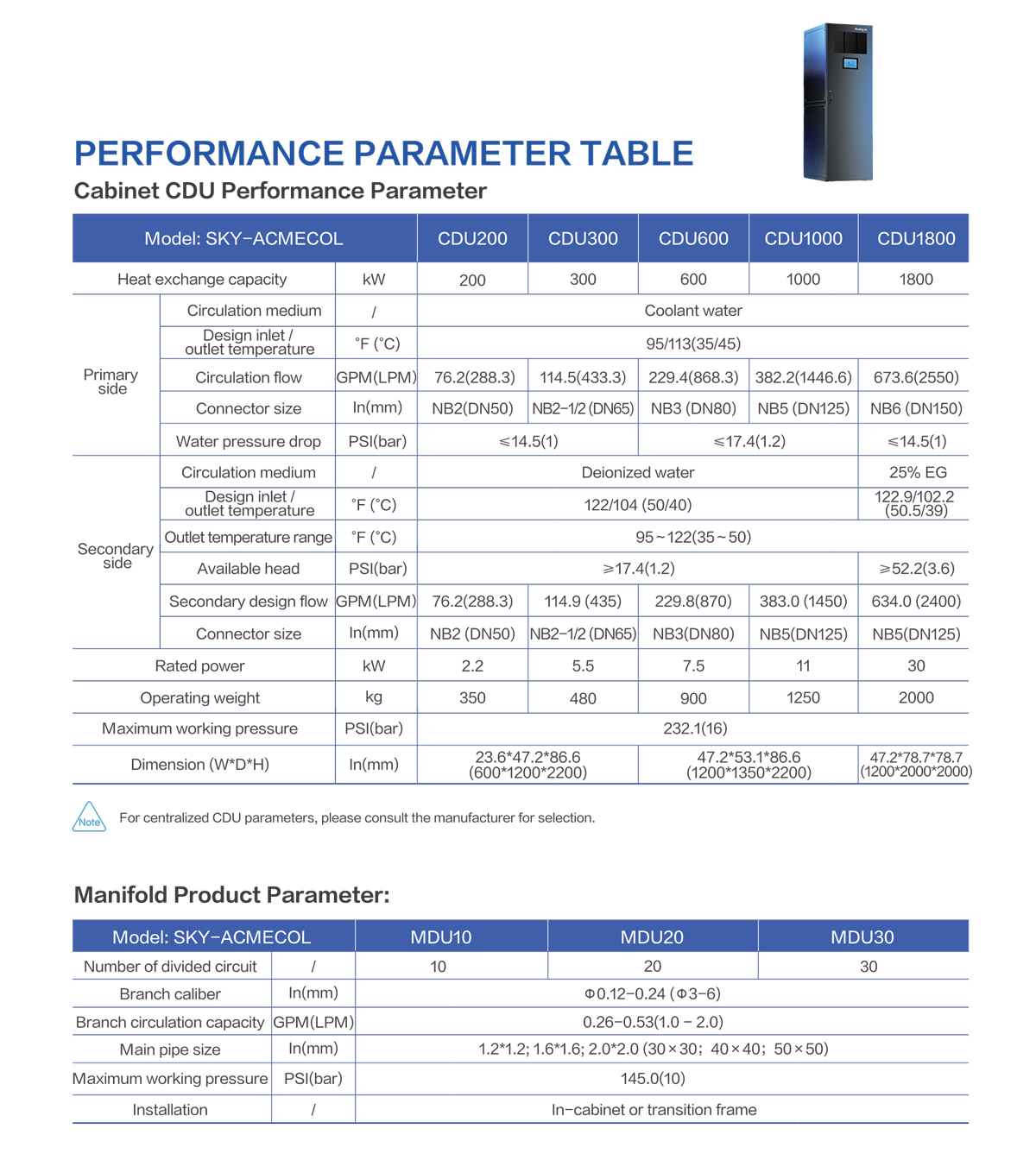

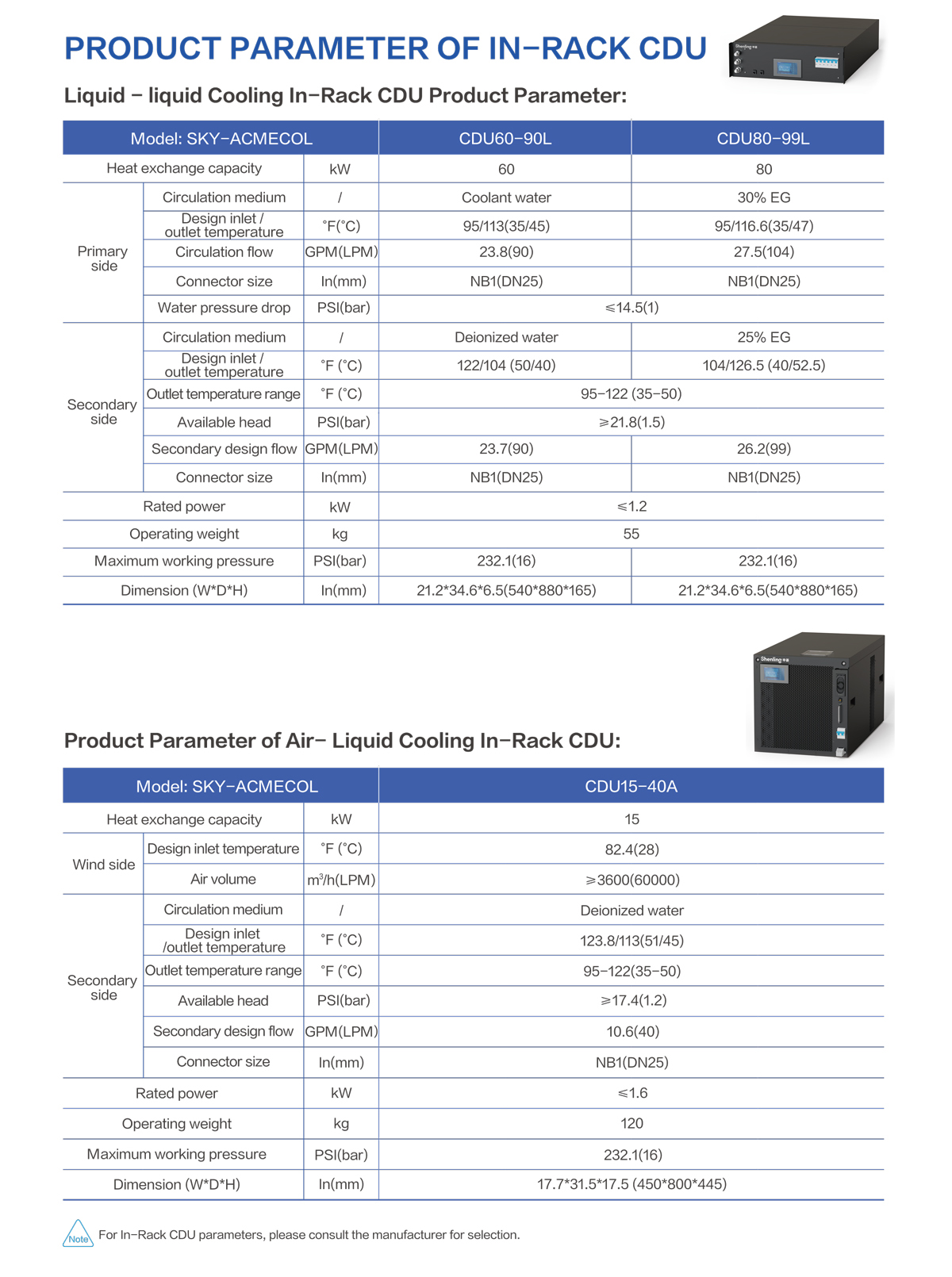

- Available with Cabinet and In-Rack CUDs
